This service is used at the time of the redeem process and also Send to other users when making purchases of voucher type Top Up.

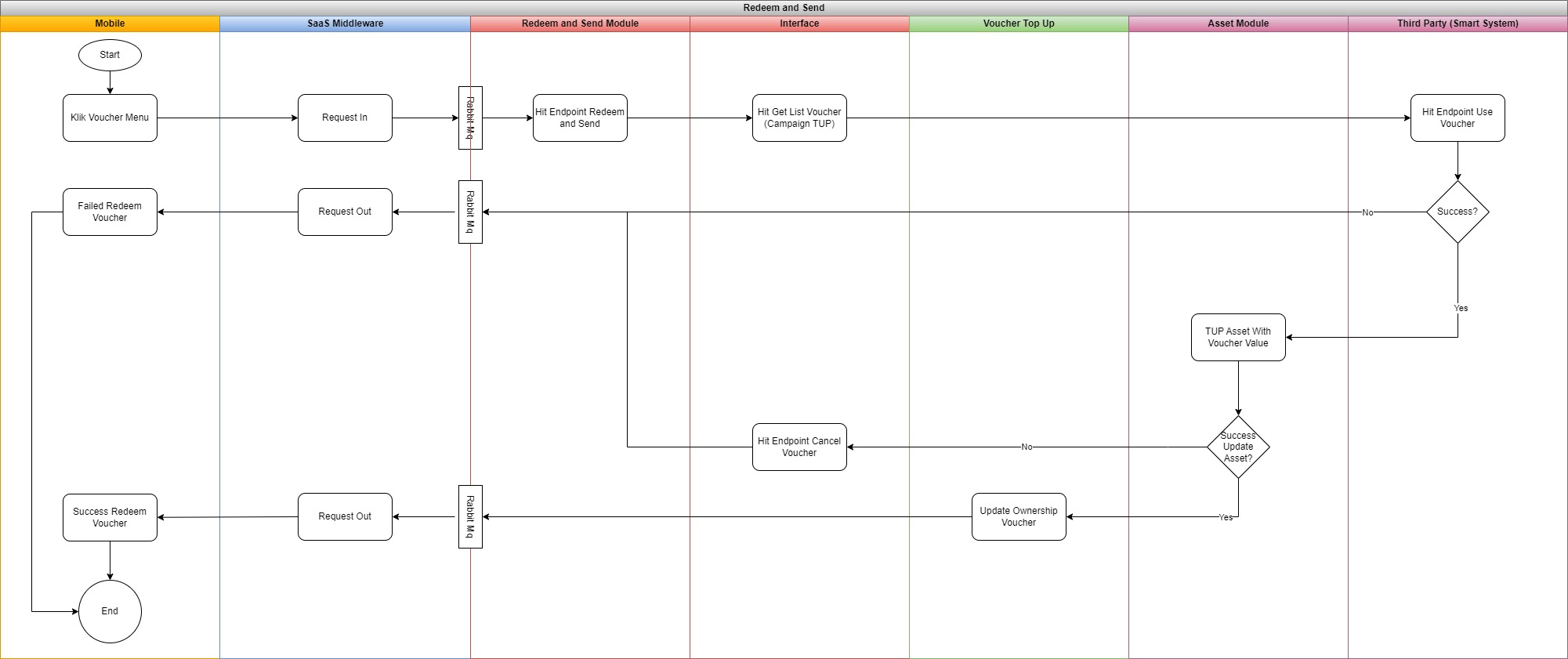

Flow Transaction Merchant Voucher Top Up

Here's the detail of service action in Transaction Merchant Voucher Top Up :

Redeem

Payload Data

Name	Data Type
VoucherNo	String
PhoneNo	String
Latitude	String
Longitude	String
Signature	String

Example Request

{
  "Subject": "transaction",
  "SubjectType": "merchant",
  "SubjectIdentifier": "vouchertopup",
  "Action": "redeem",
  "ResourceType": "data",
  "Resource": "data",
  "ResourceId": "data",
  "Data": {
    "VoucherNo": "TUP-1989929",
	"PhoneNo":"08976524362",
	"Latitude": "6.193125",
	"Longitude": "106.821810",
	"signature": "d55kJZBUR7asSZi69SxwgV:APA91b"
  }
}

Redeem and Send

Payload Data

Name	Data Type
VoucherNo	String
PhoneNo	String
Latitude	String
Longitude	String
Signature	String

Example Request

{
  "Subject": "transaction",
  "SubjectType": "merchant",
  "SubjectIdentifier": "vouchertopup",
  "Action": "redeemandsend",
  "ResourceType": "data",
  "Resource": "data",
  "ResourceId": "data",
  "Data": {
    "VoucherNo": "TUP-1989929",
	"PhoneNo":"08976524362",
	"Latitude": "6.193125",
	"Longitude": "106.821810",
	"signature": "d55kJZBUR7asSZi69SxwgV:APA91b"
  }
}
